Description

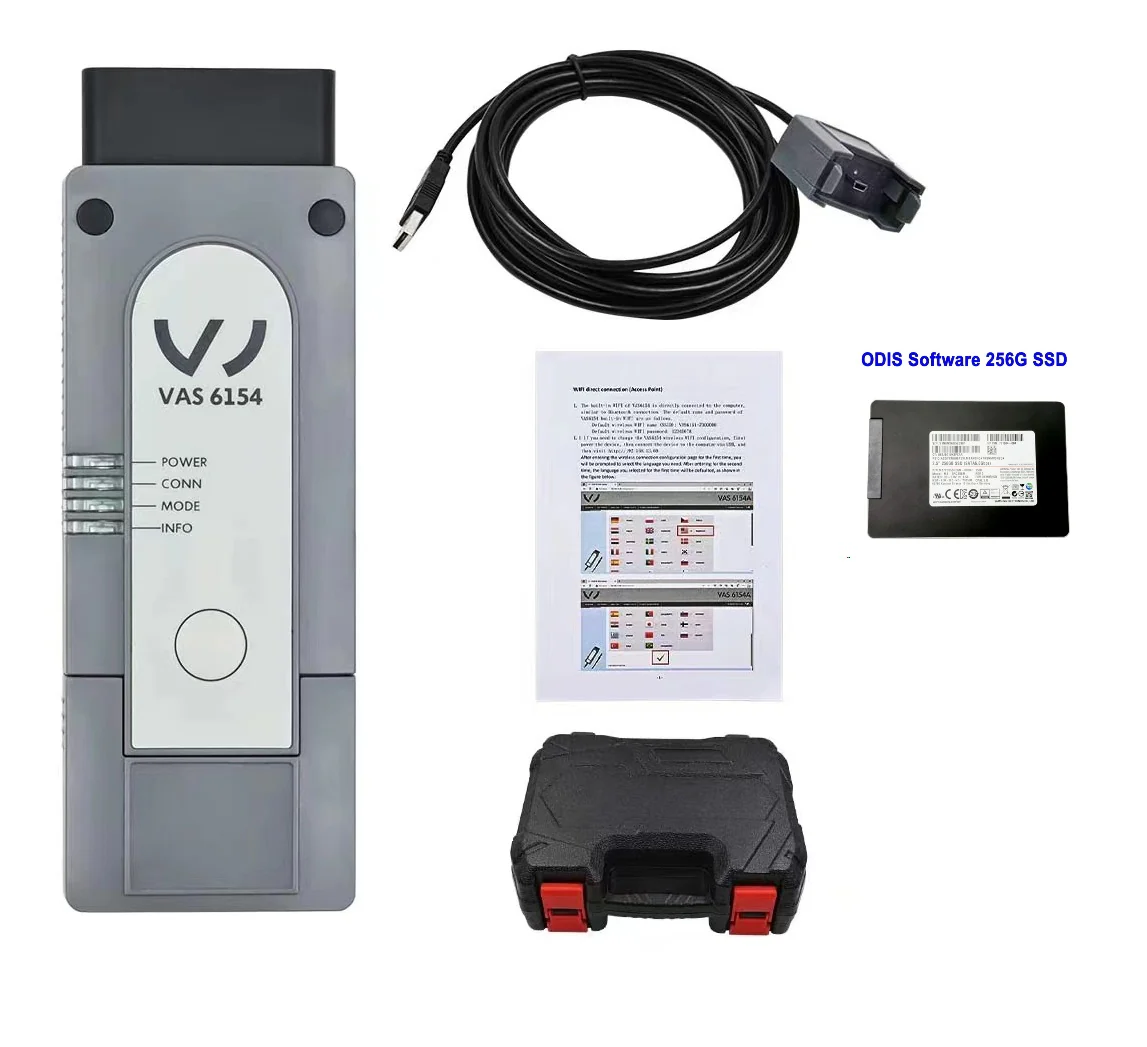

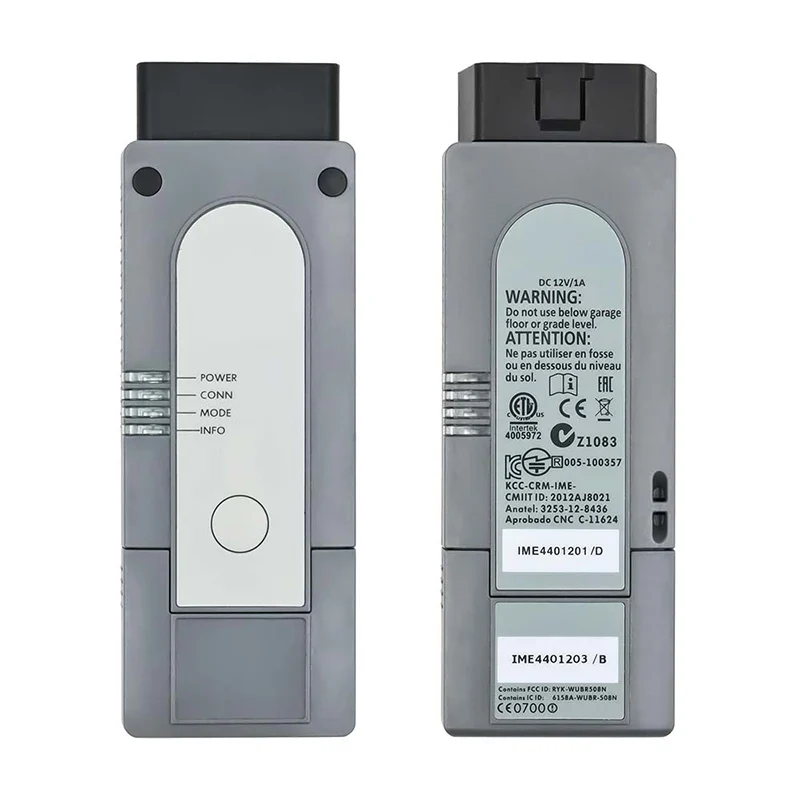

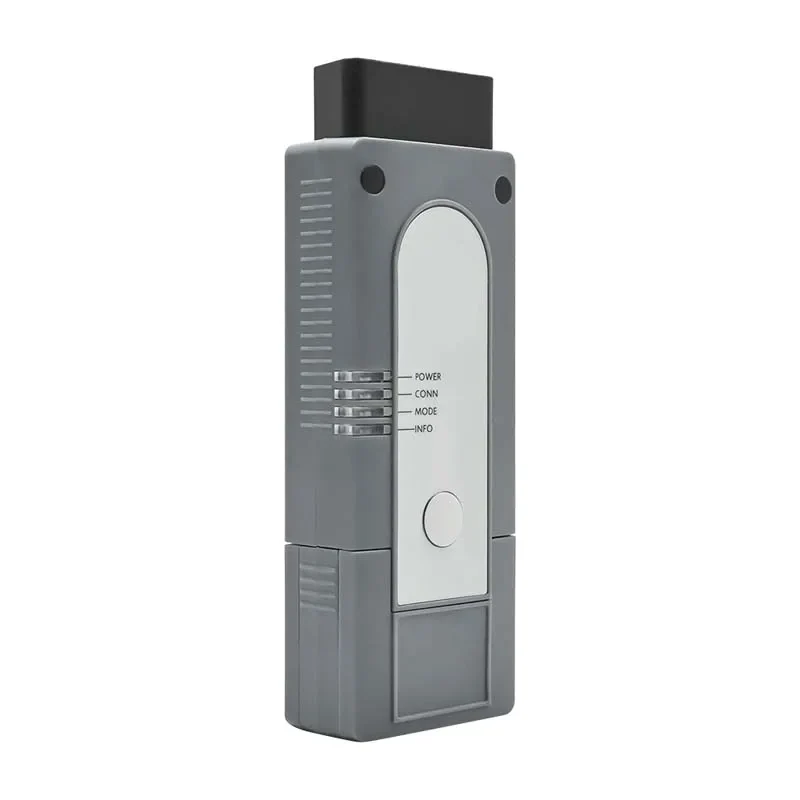

VAS 6154A Professional
Advanced Diagnostic Solution for Volkswagen Group - VW • Audi • Seat • Skoda
WiFi Wireless Connection
Professional wireless diagnostics up to 100 Mbps data transfer. Work freely around the vehicle without cable limitations while maintaining stable connection.
DoIP Protocol Support
Diagnostics over Internet Protocol for modern VW Group vehicles. High-speed communication with 2016+ models featuring advanced gateway systems and CAN-FD networks.
ODIS Service & Engineering
Full compatibility with ODIS Service and ODIS Engineering software platforms. Perform professional diagnostics, coding, and programming operations with dealer-level capabilities.
ECU Coding & Programming
Advanced ECU flashing, software updates, and module coding. Perform complex programming operations including gateway installations and feature activations.
VIN Auto Recognition
Automatic vehicle identification via VIN number. Instant access to vehicle-specific data, control modules, and compatible software versions for accurate diagnostics.
Advanced Protocol Support
Comprehensive protocol support including DoIP, CAN-FD, KWP2000, UDS, ISO9141, and J2534-1/2. Compatible with all VW Group communication standards.
VAS 6154A: Professional Volkswagen Group Diagnostic System
The VAS 6154A represents the pinnacle of Volkswagen Group diagnostic technology, specifically engineered for VW, Audi, Seat, and Skoda vehicles. This next-generation diagnostic interface combines wireless freedom with professional-grade capabilities, offering the closest hardware and software compatibility to original factory equipment. With WiFi and USB connectivity options, DoIP protocol support, ECU programming, module adaptation, and comprehensive fault code detection, it enables automotive professionals to perform dealer-level diagnostics and programming operations.
Next-Generation Connectivity and Performance
Experience unprecedented diagnostic speed with data transfer rates up to 100 Mbps via WiFi connection. The device's robust design ensures stable communication in demanding workshop environments, while the compact and ergonomic form factor provides maximum portability. Advanced DoIP (Diagnostics over Internet Protocol) support enables seamless communication with modern VW Group vehicles equipped with gateway systems and CAN-FD networks.
Professional Software Integration
Fully compatible with ODIS Service and ODIS Engineering platforms, the VAS 6154A provides access to the complete range of Volkswagen Group diagnostic and programming capabilities. Whether you're performing routine maintenance diagnostics, complex ECU coding, or software updates, this device delivers the reliability and precision demanded by professional technicians and authorized service centers.
Comprehensive Diagnostic Functions
DTC Reading & Clearing
Live Data & Graphical Display
ECU Software Updates & Coding
EGR & DPF Regeneration
Ignition System & Component Tests
Throttle Body Adaptation & Testing
Transmission Testing & Adaptations
Injector Coding & Performance Tests
ABS Testing & Steering Angle Calibration
Automatic Transmission Coding
VIN-Based Automatic Connection
Volkswagen Group Vehicle Support
Comprehensive compatibility with all VW Group brands and models
Volkswagen
Complete diagnostic support for all VW models:
Audi
Premium diagnostic capabilities for all Audi vehicles:
Seat
Full diagnostic support for Seat vehicle lineup:
Skoda
Comprehensive diagnostics for all Skoda models:
Software Platform Compatibility
Professional diagnostic and programming software integration
ODIS Service
Official diagnostic platform used in authorized service centers for comprehensive vehicle diagnostics and maintenance.
ODIS Engineering
Advanced platform for ECU software operations, programming, and complex coding procedures.
Software Notice
Software packages are not included with the device and must be obtained separately by the user.
Technical Specifications
| Feature | Specification |
|---|---|
| Connectivity | WiFi (Wireless) & USB (Wired) |
| Data Transfer Speed | Up to 100 Mbps |
| Protocol Support | DoIP, CAN, CAN-FD, KWP2000, UDS, ISO9141, J2534-1 & J2534-2 |
| Operating System | Windows 10/11 (64-bit Pro versions) |
| Software Compatibility | ODIS Service (v23.0.1), ODIS Engineering (v17.1) |
| Physical Design | Compact and ergonomic (portable) |
| Build Quality | Robust external housing, service environment resistant |
| Language Support | Multi-language including English, German, Spanish, French |
| Vehicle Coverage | All VW Group brands (VW, Audi, Seat, Skoda) |
| Special Features | VIN-based auto recognition, ECU programming, Module adaptation |
Frequently Asked Questions
Everything you need to know about the VAS 6154A
Which vehicles are compatible with VAS 6154A?
expand_moreVAS 6154A is compatible with all Volkswagen Group vehicles including Volkswagen, Audi, Seat, and Skoda. DoIP protocol support provides superior performance especially with vehicles produced after 2016. It can work with many new generation vehicles including 2023 models and supports comprehensive diagnostics for both older and newer VW Group platforms.
What's the difference between VAS 6154A and VAS 5054A?
expand_moreKey differences include:
- check_circle VAS 6154A features wireless WiFi connectivity (5054A uses Bluetooth)
- check_circle Supports next-generation protocols like DoIP and CAN-FD
- check_circle Higher data transfer speeds and more stable connection
- check_circle Faster and more compatible for ECU programming compared to 5054A
Is a computer required?
expand_moreYes, the device requires a computer with Windows 10/11 operating system and ODIS software installed for operation. The device cannot be used standalone and must be connected to a compatible PC running the appropriate diagnostic software. A reliable laptop or desktop computer is essential for proper functionality.
Which operating systems are supported?
expand_moreOfficially, only Windows 10 and Windows 11 (64-bit Pro versions) are supported. MacOS and Linux systems are not supported. While it may work with virtual machines, stability is not guaranteed. For optimal performance and reliability, we recommend using a dedicated Windows system with adequate specifications.
Can I perform ECU coding and programming?
expand_moreYes, VAS 6154A supports comprehensive ECU coding and programming operations when used with ODIS Engineering software. This includes ECU flashing, software updates, module replacements, feature activation/deactivation, and gateway programming. The device's DoIP support enables fast and reliable programming operations on modern VW Group vehicles.
Professional Volkswagen Group Diagnostics
The VAS 6154A delivers a superior professional diagnostic solution for Volkswagen Group vehicles. With authorizedservice-quality diagnostics, modern protocol support, and wireless connectivity advantages, it provides both technical excellence and operational efficiency for all automotive professionals. Ideal for technicians who demand dealer-level diagnostic capabilities in their workshop.
